What is Data Terminal Unit? A Comprehensive Introduction to DTU’s Origin and Functions

BLOG 380

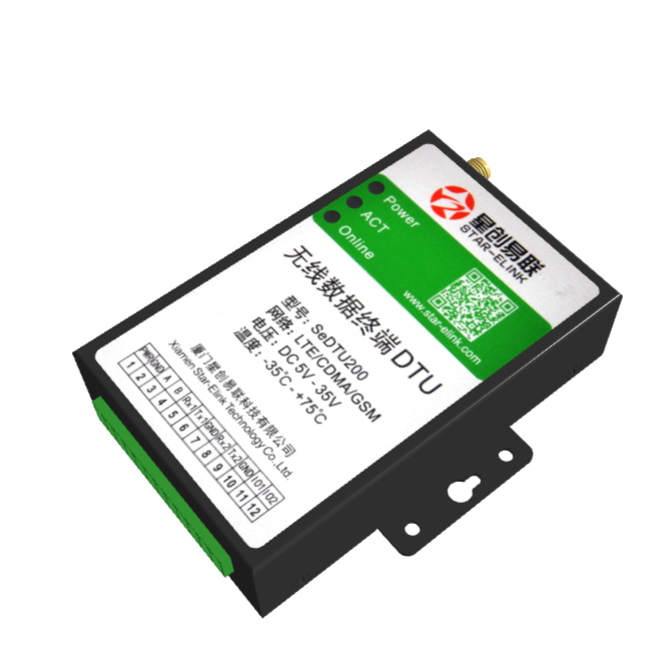

What is Data Terminal Unit

In today’s world, IoT communication devices are emerging in abundance, with many wireless terminal products standing out from the crowd. DTU (Data Terminal Unit) data transmission devices are recognized by the industry for their powerful transmission capabilities and superior stability, making them one of the most commonly applied products in IoT communication devices. Below, I will provide a comprehensive explanation of DTU’s origins and application scenarios. Let’s take a look!

What is a DTU?

DTU (Data Terminal Unit) is a wireless terminal device used for data transmission, as its name suggests, achieving transparent two-way data transmission.

Development History of DTU

  • In the 1920s, the first DTU was developed, with multiplexing technology that met the DTU definition being used in news dedicated lines
  • In the 1940s, DTUs were used in typewriters
  • In 1958, DTUs were applied to military applications and were called intelligent DTUs
  • In the 1970s, after the emergence of wireless cellular networks, DTUs evolved into wireless terminal devices, becoming one of the important communication devices in the IoT
  • In 1981, DTUs were introduced to China
  • Around 1990, manufacturers in China began to research, develop, and design DTU products
  • With the continuous development of 3G, 4G, and NB-IoT networks, 4G DTUs and NB-IoT DTUs began to appear
  • Today, as communication technologies such as LoRa, WiFi, and Bluetooth mature, LoRa DTUs, WiFi DTUs, and other devices have subsequently appeared

Working Principle of DTU

The DTU connects to terminal devices through interfaces, and after acquiring data, transmits it wirelessly through carrier networks (2G/3G/4G/5G) to designated data centers or devices. Simultaneously, data centers can also send data or commands in reverse through carrier networks to the DTU, which then forwards them to terminal devices through interfaces, thereby achieving applications such as real-time data collection and database services.

Basic Functions of DTU

  1. Data communication: DTUs have integrated TCP/IP protocol stacks internally, supporting dual-channel data transmission via GPRS/CDMA and SMS; they support data communication with multiple centers
  1. Data collection: Collects data from serial port devices such as serial instruments, collectors, PLCs, etc.
  1. Support for permanent online status: DTUs include features such as automatic dialing when powered on, using heartbeat packets to ensure permanent online status, compatibility with automatic reconnection after disconnection, automatic redialing, etc., allowing devices to remain permanently online
  1. Providing permanent storage: DTU terminal devices can permanently store configured parameters in storage components (such as FLASH, EEPROM). Once powered, the DTU will complete its work automatically according to the set parameters
  1. Remote management: Supports remote program upgrades, remote SMS configuration parameter queries, remote device restarts, remote device parameter configuration
  1. Data encryption: Supports data encryption, with encryption methods including DES, 3DES, AES

DTU Product Types

By communication method: DTUs can be classified as GPRS DTU, WiFi DTU, CAN DTU, and full-network 5G/4G DTU
By interface type: DTUs generally support RS485, RS232, I/O, TTL, and other interfaces
By form factor: DTUs can be classified as general-purpose DTUs and embedded DTUs, with little functional difference between them, the main distinction being whether they have an enclosure or not

DTU Application Scenarios

  1. Environmental Monitoring
With green environment being a consensus as the development trend of future economies, DTUs play an important role in water conservancy monitoring, meteorological monitoring, earthquake disaster monitoring, and other aspects with advantages such as low cost and flexible networking, effectively solving the difficulties of large-scale real-time monitoring.
  1. Pipeline Inspection
In today’s industrial modernization, pipeline transportation has become an indispensable part of social progress. DTUs are widely applied in projects such as gas pipeline networks, oil pipeline networks, heating network monitoring, and water supply network monitoring, making intelligent monitoring a reality.
  1. Industrial Inspection
The industrial field is related to the normal operation of the national economy. With the improvement of industrial automation levels, DTUs are increasingly widely used in facilities such as oilfield monitoring, street light control, traffic control, and vehicle guidance, playing an important role in effectively ensuring the operational safety of industries such as oil and transportation, and improving industrial management levels.
  1. Agricultural Monitoring
DTUs are widely applied in the agricultural field and can monitor data such as water supply, growth status, and fertilization frequency. They can also send control commands for remote control in response to any situation. Due to characteristics such as low cost, accurate data collection, and timeliness, agricultural intelligence is becoming the main trend of the future.
  1. Power Monitoring
DTUs have been applied in the power field for more than a decade, evolving from previous manual inspection and maintenance to current intelligent terminal device monitoring. DTUs play an important role in projects such as power distribution monitoring, power grid automation, automatic meter reading, and power grid dispatching, and the demand continues to rise.

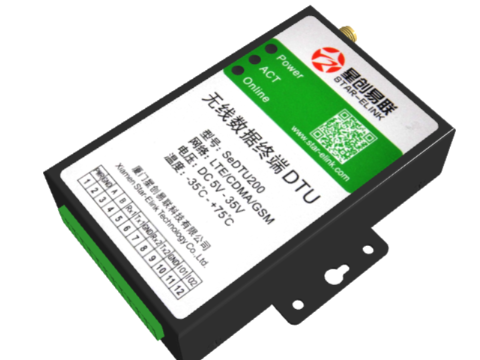

10f5f2aa449c3c0b878a3768c0117c4c
