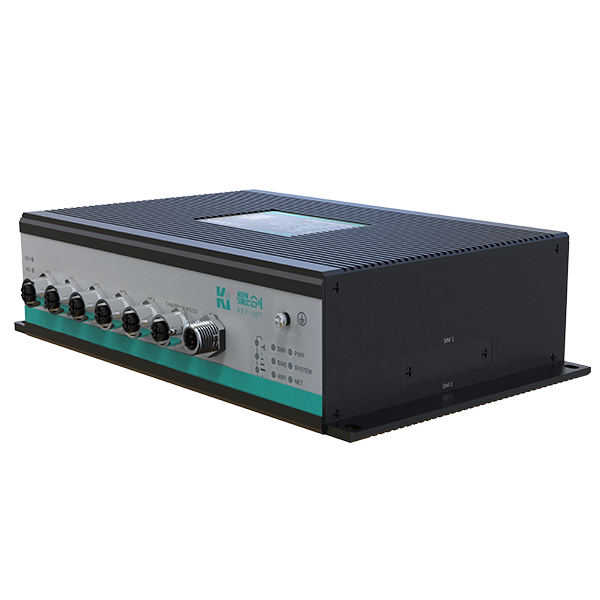

StarRouter 900 (SV900) series products are IoT wireless routers integrating 4G/5G network and Virtual Private Network (VPN) technologies. Equipped with 4G/5G Wireless Wide-Area Network (WWAN) and Wi-Fi Wireless Local-Area Network (WLAN) technologies, this device provides uninterrupted access to multiple network connections. With comprehensive security features and wireless service capabilities, it delivers high-speed and stable data transmission channels for users.
Supports dual-mode configurations with optional dual 5G or 5G+4G/Redcap modules
Supports SIM/eSIM cards
Features M12 automotive-grade connectors for secure and reliable performance
Supports GPS/BeiDou (optional)
Supports WIFI6 (optional)
Supports Linux system for secondary development, with comprehensive development guidelines provided
| Hardware Parameters | |
|---|---|
| Hardware performance | |
| CPU | Quad-core A55, clocked at 2GHz |
| Memory | 2GB, expandable to 4GB |
| FLASH | EMMC 8GB, expandable to 16GB |
| WIFI (optional) | Support 2.4G/5.8G dual-band, with a maximum rate of 866.7Mbps; optional WIFI6, with a maximum rate of 1774Mbps |
| Network support | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78/N79 4G: FDD-LTE：B1/B3/B5/B7/B8/B20/B28/B32/B71 TDD-LTE：B38/B40/B41/B42/B43/ 3G: WCDMA: B1/B2/B4/B5/B8 |
| System time | Time synchronization uses NTP technology and has built-in RTC |
| Product Interface | |
| In-vehicle Ethernet interface | 3 1000/100BASE-T1 and 3 100BASE-T1 |
| Ordinary standard Ethernet interface | 2 (1000/100BASE-TX) Ethernet ports with M12 aviation connectors |
| SIM card interface | 2 nano-sim card holders |
| ESIM card (optional) | 2 eSIM cards |
| Wi-Fi (optional) | IEEE 802.11b/g/n/ac/ax IEEE 80211ax (wifi6), maximum rate 1774Mbps IEEE 80211ac (wifi5), maximum speed 866Mbps |
| GPS/Beidou (optional) | Support GPS/Beidou |

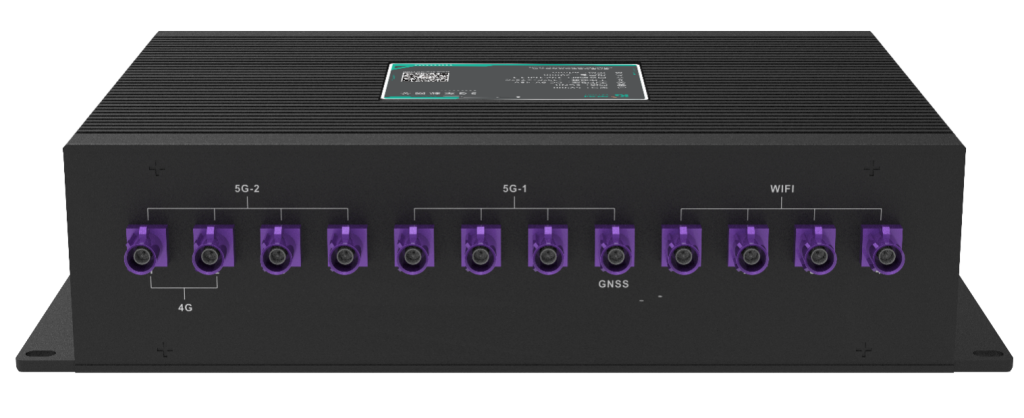

| Antenna interface | 2 4-in-1 mini fakra 5G/4G antenna interfaces, 1 4-in-1 mini fakra WI-FI antenna interface 2 V2X antenna interfaces 1 LTE Cat.1 antenna port |
| Power interface | 1, 4PIN aviation connector, supports dual redundant power input: DC 9~48V |
| Serial Port | 1*RS232，1*RS485 |
| CAN interface | 2-way CAN interface, expandable to 3-way CAN interface |
| Relay | 2-way relay, maximum input voltage 30VDC/250VAC, maximum current 5A |
| FROM | 2-way optocoupler isolated DI (DI0 tests dry node, DI1 tests wet node) Logic 0: wet node 0~2VDC, or dry node conduction Logic 1: wet node 9~30VDC, or dry node disconnected |
| Indicator Lights | 9 (1 PWR light, 1 SYS light, 1 WIFI light, 1 NET light, 3 signal strength lights, SIM1 light, SIM2 light) |
| Power supply characteristics | |
| power supply | External power adapter (12V 2A) |
| Operating voltage | Wide power input DC 9~48V |
| Working conditions | |
| Operating temperature | -35~+75℃ (-31~+167℉) |
| Storage temperature | -40~+85℃ (-40~+185℉) |
| Operating humidity | 5%~95% (no condensation) |
| Equipment ventilation | Natural heat dissipation, no noise |
| Physical characteristics | |
| Chassis | Aluminum chassis |
| Installation | Lay flat on the table |
| Equipment safety and reliability | |
| Safety and reliability | Power reverse phase protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection; |
| Hardware watchdog | Embedded hardware watchdog, device failure self-repair |
| Protection level | IP40 |
| Certification | Comply with CCC, Rohs, CE certification |
| MTBF | ≥100,000 hours |
| Software Parameters | |
| Network Features | |
| Cellular Network | Support dual-mode, optional dual 5G or 5G+4G/Redcap modules |
| 5GLAN (optional) | Support 5GLAN |
| Bridge Mode | Support bridge mode, which can directly give the cellular network dial-up IP to the lower computer |
| WAN Protocols | Support static IP, DHCP, PPPOE |
| IP Application | 支持Ping、Trace、DHCP Server、DHCP Relay、DHCP Client、DNS relay、DDNS、Telnet |
| Wi-Fi | Support AP and client mode (STA) |
| VLAN | Support VLAN, support VLAN ID in Tagged and Untagged modes |
| Multi-link management | Support link detection, link backup, optional dual 5G, WAN, Wi-Fi free combination backup |
| Static Routing | Support adding static routes |
| Dynamic Routing | Support dynamic routing OSPF, RIP protocol |
| Cluster Routing | Supports policy routing to achieve data diversion |
| WLAN (optional) | |
| Protocol Standards | IEEE 802.11b/g/n/ac/ax (optional) |
| rate | IEEE 80211ax (wifi6), maximum rate 1774Mbps; IEEE 80211ac (wifi5), maximum rate 866Mbps |
| Safety Features | Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Working Mode | AP, Client working mode |
| Transmission distance | 100m (actual transmission distance depends on the environment) |
| Firewall & Network Security | |
| Firewall | Stateful Packet Monitoring (SPI), preventing Denial of Service (DoS) attacks by filtering multicast Ping packets, Access Control List (ACL) Content URL filtering, port mapping, virtual IP mapping, IP-MAC binding |
| VPN | Support IPsec/OPENVPN/L2TP/PPTP/VXLAN/GRE/GRD TAP |
| NAT | Support DMZ, support port forwarding |
| Address filtering | Support IP, domain name, MAC filtering, support black and white list settings |
| app | |
| Technical University of Denmark | Support TCP, UDP, MQTT, HTTP, HJ212-2017, NTRIP, MODBUS TCP, MODBUS RTU, MODBUS TCP to MODBUS RTU protocol |
| Data collection | Support MODBUS and Siemens S7 series PLC data collection and conversion to JSON |
| Status information reporting & linkage | Supports querying or actively reporting device status information via TCP and MQTT, including: dial-up status, operation status, link usage status, etc. |
| Traffic Statistics | Supports statistics of whole machine flow and IP flow, and supports over-flow and network limiting functions |
| Scheduled tasks | Support scheduled restart and scheduled custom tasks |
| Cloud device management platform | Support remote configuration, remote upgrade, remote viewing, etc. |
| Location Services | Support base station positioning, support GPS/Beidou (optional), support reporting base station information or GPS information |
| SNMP | Support SNMP v1/v2/v3 |
| System Settings | |
| Log function | Supports local system log, remote log, serial port output log, and power off log saving function. |
| Configuration | Support web, telnet, ssh and console configuration methods, support configuration import and export |
| System Upgrade | Support web local upgrade and cloud platform FOTA upgrade |
| System time settings | Built-in RTC clock, supports NTP network time synchronization, manual time setting and GPS time synchronization |
| Maintenance Tools | Support PING, route tracking |
| Status Query | System status, 5G dial-up status, network connection status, routing status, etc. |
| Model | PID | Version Description |
| SV900 | 00 | Supports 2*5G modules |
| SV900 | 02 | Supports 1*5G module+1*4G module |
| SV900 | 03 | Supports 1*4G modules |
| SV900 | 04 | Supports 1*5G modules |
