StarRouter 510 industrial 5g router is a series of IoT wireless routers integrating 4G/5G network and Virtual Private Network (VPN) technologies. Equipped with features such as 4G/5G wireless wide-area network (WWAN) dual-network backup, this device ensures uninterrupted access to multiple network connections. With comprehensive security features and wireless service capabilities, it provides users with high-speed and stable data transmission channels.
Supports 5G NR high-speed networks and Redcap networks
Supports National encryption (optional)
Supports dual SIM cards with mutual backup functionality（failover）
Supports GPS/BeiDou (optional)
Supports WLAN (optional)
Supports failover between wired and wireless connections
Supports dynamic routing protocols OSPF and RIP
Supports policy-based routing for traffic splitting
Supports querying and reporting of device status information
Supports VLAN configuration, including multiple VLANs with tagged and untagged modes
Supports Linux system for secondary development, with comprehensive development guidelines provided
Supports SNMP and StarCloud Platform (Device Management Platform)
Supports multiple VPN functions: PPTP, L2TP, IPSEC, OpenVPN, GRE, GRETAP, VXLAN，etc
| Hardware Performance | |
| Memory | 64MB |
| FLASH | 16MB，expandable to 32MB |
| Network Support | Industrial-grade 5G module |
| System Time | Time synchronization using NTP technology, with built-in RTC |

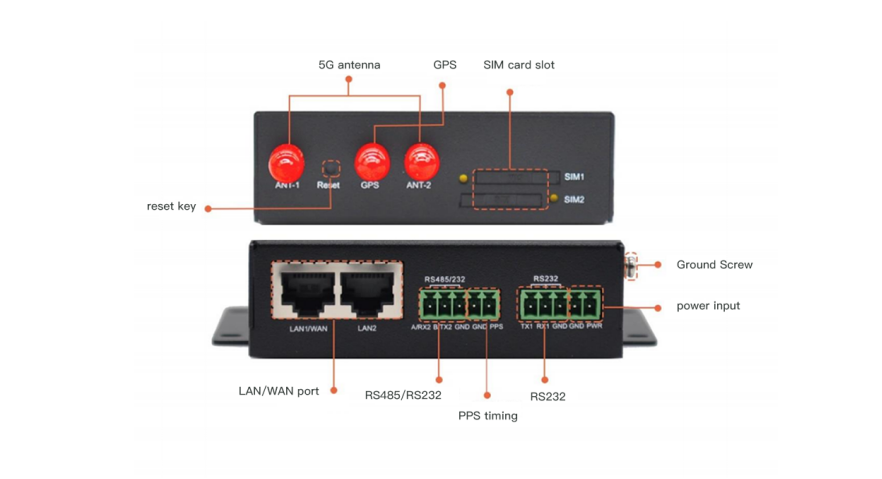

| Interface | |
| LAN Port | 2 (10M/100M adaptive MDI/MDIX port), one of which can be reused as a WAN port |
| SIM Card Interface | 2 (drawer-type card slots, supporting 1.8V/3V SIM/UIM cards) |
| Reset | 1 (reset button) |
| Antenna Interface | 2 (4G/5G antennas, impedance 50 ohms, SMA male inner pin interface) |
| 1 (optional, GPS antenna, impedance 50 ohms, SMA inner pin interface) | |
| Power Terminals | 1 (2-pin 3.5mm pitch connector) |
| Serial Ports | 1 RS232, 1 RS485 (can be reused as RS232), 3.5mm pitch connector |
| GPS | GPS time synchronization (optional) |
| Encryption | Hardware encryption (optional) |
| Indicators | 1 Power light (red), 1 network light (green), 1 SIM card light (green), 1 online light (green), 1 GPS/BD signal light (green) |
| Power Characteristics | |
| Power Supply | External power adapter (12V 2A) |
| Operating Voltage | Wide power input DC 9~36V |
| Standby Power Consumption | 80~150mA@12V DC |
| Operating Power Consumption | 150~250mA@12V DC |
| Operating Conditions | |
| Operating Temperature | -35~+75℃ (-31~+167℉) |
| Storage Temperature | -40~+85℃ (-40~+185℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| Device Ventilation | Natural heat dissipation, noise-free |
| Physical Characteristics | |
| Casing Material | Metal housing |

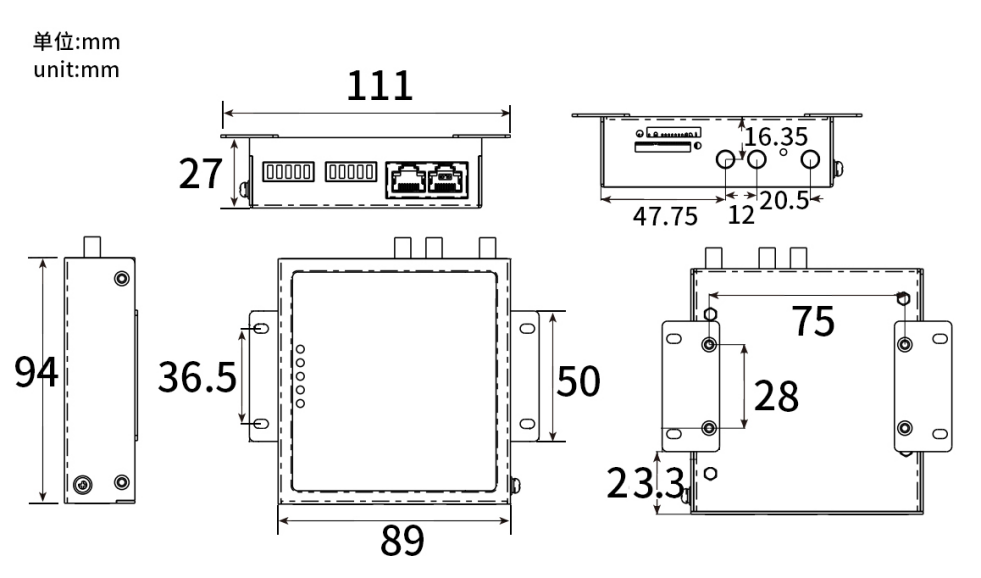

| Dimensions | Length * width * height 94 * 89 * 27mm (excluding antenna and mounting parts) |
| Installation Methods | Desktop placement, DIN rail installation, wall-mounted |
| Weight | Net weight: 0.40KG (excluding antennas and mounting parts) |
| Gross weight: 0.70KG (with accessories and packaging box) | |
| Device Security and Reliability | |
| Security and Reliability | Reverse polarity protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection; RS232/RS485 interface built-in 15KV ESD protection; SIM/UIM card interface built-in 15KV ESD protection |
| Protection Level | IP30 |
| Certifications | Complies with CCC、Rohs |
| MTBF (Mean Time Between Failures) | ≥100,000 hours |
| Software Features | |
| Network Access | Supports APN, VPDN |
| Access Authentication | Supports CHAP/PAP authentication |
| Network Modes | GSM/GPRS/EDGE,LIMTS/HSPA+/EVDO/TD-SCDMA/TD-LTE/5G NR |
| LAN Protocols | Support ARP, Ethernet |
| WAN Protocols | Supports static IP, DHCP, PPPoE, PPP |
| IP Applications | Supports Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet |
| IP Routing | Supports static routing, dynamic routing protocols (OSPF, RIP), and policy-based routing |
| NAT Function | Supports Network Address Translation |
| Industrial Protocols | Supports IEC101/104 protocol, supports environmental protection 212 protocol, supports MQTT, MODBUS, and other industrial protocols |
| Network Security | |
| Firewall | Full state packet inspection (SPI), prevention of denial of service (DoS) attacks, filtering multicast Ping packets, access control lists, URL filtering, port mapping, virtual IP mapping, IP-MAC binding |
| Data Security | IPsec VPN/L2TP/PPTP/GRE/GRETAP/Vxlan/OPEN VPN/CA Certificate |
| Reliability | |
| Backup Function | Supports wired, 5G, mutual backup |
| Link Online Monitoring | Sends heartbeat packets for detection, automatically reconnects after disconnection |
| Embedded Watchdog | Device self-checking technology, device fault self-repair |
| Intelligence | |
| Integrated DTU Function | Supports TCP, UDP transparent transmission mode, TCP Server mode, supports Modbus RTU to Modbus TCP bridge, supports DCUDP, DCTCP mode |
| Network Management | |
| QOS Management | Supports bandwidth limitation, IP speed limit |
| Configuration Methods | Supports Telnet, Web, SSH, and Console configuration methods |
| Upgrade Method | Supports WEB upgrade, supports FOTA (Firmware Over The Air) |
| Logging Function | Supports local system logs, remote logs, serial port output logs |
| Network Management Function | Supports KEY-IoT Device Management Platform for batch management |
| Simple Network Management Protocol(Optional) | SNMP v1/v2/v3, Supports SNMP TRAP Functionality |
| Traffic Management | Supports setting traffic thresholds, supports traffic statistics and traffic alarm functions |
| Maintenance Tools | Ping, route tracing |
| Status Query | System status, modem status, network connection status, route status |
