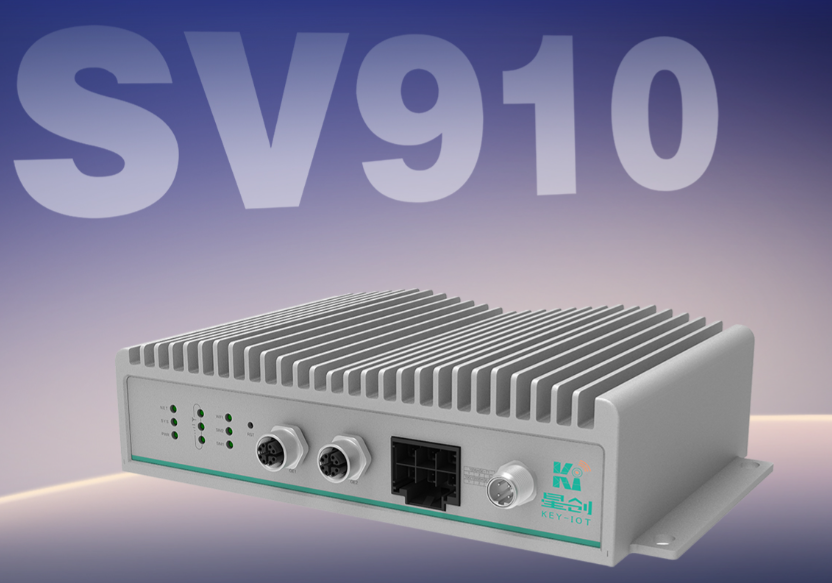

In the increasingly intelligent era of connected vehicles, a reliable and stable vehicle gateway is crucial. Today we introduce the SV910 5G Edge Computer, a high-performance vehicle gateway specifically designed for intelligent transportation systems. Its exceptional interface system and IP40 protection features provide solid support for your intelligent connected vehicle applications.

Rich Interfaces, Worry-Free Connectivity

The SV910 vehicle gateway boasts an industry-leading comprehensive interface system to meet various communication needs in vehicular environments:

• Complete vehicle Ethernet support: Moving beyond traditional vehicle communication limitations, the SV910 is equipped with 3 high-speed 1000/100BASE-T1 interfaces and 3 100BASE-T1 interfaces, enabling fast and smooth internal network communication to handle growing in-vehicle data exchange demands.

• Dual-mode cellular network, never offline: Supports dual 5G or 5G+4G/Redcap combinations, coupled with dual card design (2 nano-SIM card slots or optional eSIM), ensuring your vehicle maintains stable connectivity even in complex road conditions or remote areas, achieving true “never offline” networking.

• Intelligent WiFi connectivity: Provides 2.4G/5.8G dual-band WiFi support with maximum rates up to 1774Mbps (WiFi6 version), easily meeting passengers’ high-speed internet needs while providing stable network support for in-vehicle entertainment systems.

• Professional vehicle protocol support: Equipped with 2 CAN interfaces (expandable to 3), and support for V2X (Vehicle-to-Everything communication) and PTP (Precision Time Protocol), ensuring seamless integration with the vehicle’s own systems and providing precise data sources for connected vehicle applications.

• Rich expansion interfaces: 1 RS232 and 1 RS485 interface, 2 relay outputs and 2 digital inputs, allowing you to easily connect various external devices and sensors, expanding the gateway’s application scenarios.

• Carefully designed antenna interfaces: Using compact mini fakra design, providing dedicated antenna interfaces for 5G/4G, Wi-Fi, and V2X, ensuring stable signal reception while maintaining an aesthetic and tidy appearance.

IP40 Protection: Safety Guardian for the Vehicle Environment

In vehicle environments, gateway devices face multiple challenges such as vibration, temperature fluctuations, and dust. The SV910’s IP40 protection rating is specifically designed for these conditions:

• Robust dust-proof design: IP40 rating ensures the device can effectively prevent solid foreign objects larger than 1mm from entering, operating reliably in dusty vehicle environments and protecting internal electronic components from dust damage.

• Full aluminum alloy body: Uses aviation-grade aluminum extrusion integrated chassis, combining lightweight with high strength, effectively resisting vibration and impact during vehicle operation while providing excellent heat dissipation.

• Extreme temperature adaptability: Ultra-wide operating temperature range from -35°C to +75°C, ensuring stable operation regardless of winter cold, summer heat, or rapid temperature changes inside the vehicle, truly delivering all-weather reliable operation.

• Natural cooling without noise: Unique passive cooling design with fanless operation ensures quiet operation in the in-vehicle environment without producing additional noise that could interfere with the driving experience.

Comprehensive Electrical Safety Protection

• Multiple power protections: Built-in power reverse polarity protection, overvoltage protection, and overcurrent protection, along with a wide DC 9~48V input voltage range, perfectly adapting to the fluctuating characteristics of vehicle power supplies to ensure safe and stable device operation.

• High-level ESD protection: Ethernet interfaces with built-in 1.5KV ESD protection, while RS232/RS485 interfaces and SIM card interfaces are equipped with 15KV ESD protection, effectively preventing damage from static electricity and power surges.

• Intelligent fault self-recovery: Built-in hardware watchdog mechanism that can automatically restart and recover in case of system anomalies, ensuring critical applications won’t be interrupted for long periods due to temporary failures.

Powerful Network Functions, Smart Connected Vehicle Experience

The SV910 is not just a network channel but an intelligent hub:

• Intelligent link management: Supports link aggregation, load balancing, and automatic multi-link switching to ensure network connections remain unobstructed.

• Strong security protection: Full stateful firewall (SPI), DoS attack protection, and support for various VPN protocols (IPsec/OpenVPN/L2TP, etc.), building a solid security barrier for vehicle networks.

• Precise positioning services: Supports GPS/BeiDou positioning, combined with base station-assisted positioning, providing high-precision location information for navigation, fleet management, and other applications.

• Remote management convenience: Supports cloud platform remote management, easily achieving remote configuration, monitoring, and firmware upgrades, reducing maintenance costs and time.

The SV910 vehicle gateway is a reliable partner for the intelligent transportation era. Its comprehensive interface system, reliable IP40 protection features, and powerful network functions make your connected vehicle applications safer, more stable, and more efficient. Whether you’re an intelligent transportation system integrator, fleet manager, or public transportation operator, the SV910 provides an outstanding connection experience and reliable assurance.
